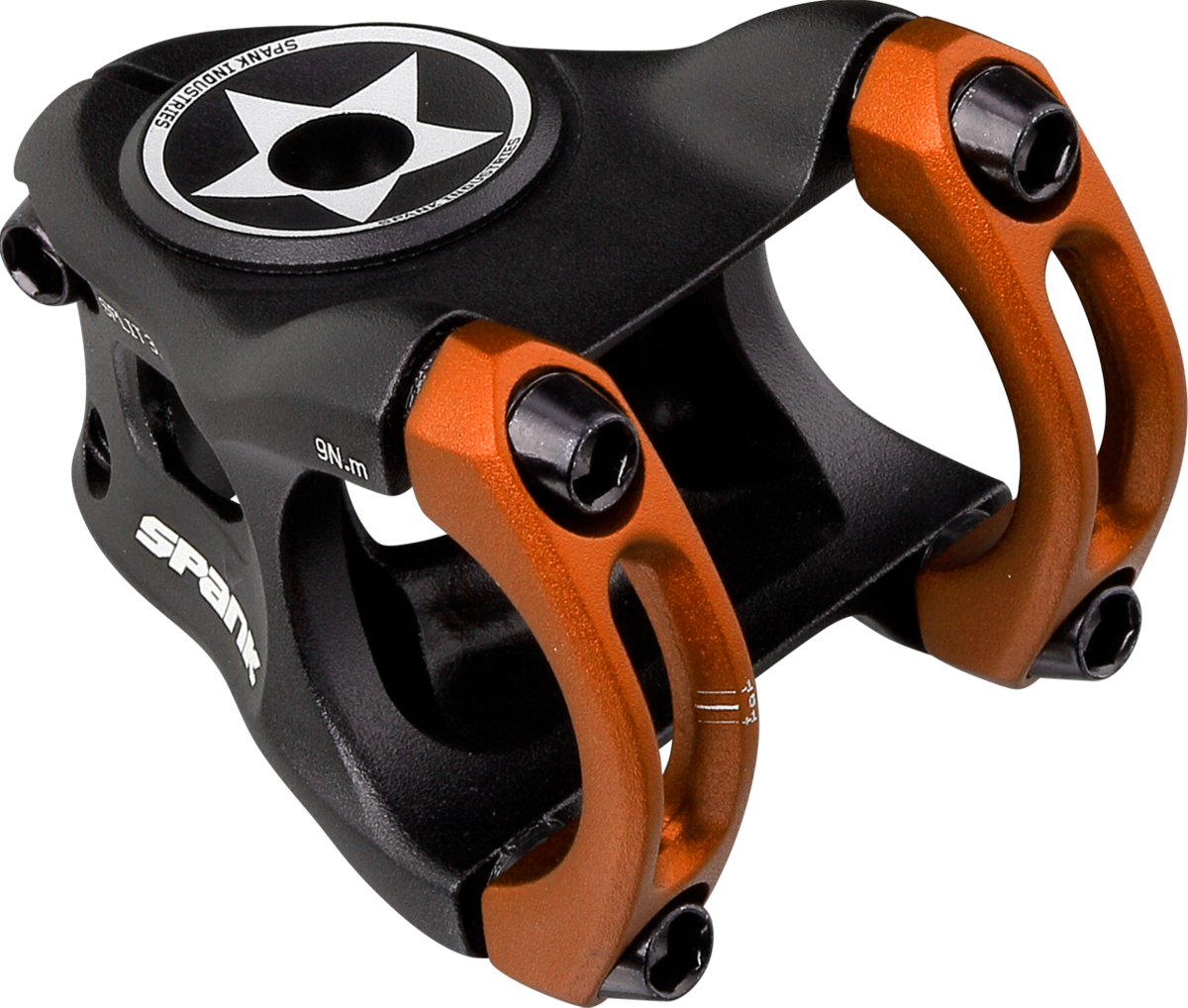

Spank Split Stem

Spank Split Stem
  • Color: Black/Orange
  • Color: Black/Red
  • Color: Black/Blue
  • Color: Black/Green
  • Color: Gun Metal
$119.99 - $129.99
Color:
Length: Select length
Clamp Diameter: 31.8mm
Steerer Diameter: 1-1/8-inch
Rise: 0°
Please select options Unavailable

Details

- Highly weight-optimized single crown stem, ideal for Enduro applications with 31.8mm handlebars
- Human Factor Design features micro increment size options, tuned to fit any rider size and style
- Human Factor cockpit setup index facilitates tuning of upsweep and backsweep
- Ultra-short stack height and true zero-degree rise
- Chamfered bar clamp to reduce stress risers and increase fatigue life in handlebars
- Forged 2-piece faceplate design reduces overall weight without compromising bar clamp security or stiffness
- Shot peen-anodized surface increases strength, durability, and fatigue life

Features:
- Key Technologies: Human Factor Design, MGR Alloy, Chamfered bar clamp, Custom Top-Cap included
- Material: 6-Series Alloy, 3D forged CNC optimized body, 2D forged faceplate
- Rise (°): 0
- Diameter: 31.8mm
- Stack Height: 34mm
- Weight: ±133g (33mm) / ±138g (38mm) ±140g (43mm) ±143g (48mm)
- Finish: Shotpeen anodized

Part Numbers

Option UPC MPN Store SKU
31.8mm / Black/Blue / 33mm / 0° / 1-1/8-inch 4710155963865 E06SL11A0300SPK
31.8mm / Black/Blue / 48mm / 0° / 1-1/8-inch 4710155963988 E06SL14A0300SPK
31.8mm / Black/Green / 33mm / 0° / 1-1/8-inch 4710155963872 E06SL11A0710SPK
31.8mm / Black/Green / 38mm / 0° / 1-1/8-inch 4710155963919 E06SL12A0710SPK
31.8mm / Black/Green / 43mm / 0° / 1-1/8-inch 4710155963957 E06SL13A0710SPK
31.8mm / Black/Green / 48mm / 0° / 1-1/8-inch 4710155963995 E06SL14A0710SPK
31.8mm / Black/Orange / 33mm / 0° / 1-1/8-inch 04710155967603 E06SL11A0600SPK
31.8mm / Black/Orange / 38mm / 0° / 1-1/8-inch 04710155967610 E06SL12A0600SPK SPN2319578M
31.8mm / Black/Orange / 48mm / 0° / 1-1/8-inch 04710155967634 E06SL14A0600SPK
31.8mm / Black/Red / 33mm / 0° / 1-1/8-inch 4710155963858 E06SL11A0400SPK
31.8mm / Black/Red / 38mm / 0° / 1-1/8-inch 4710155963896 E06SL12A0400SPK SPN23621510M
31.8mm / Black/Red / 48mm / 0° / 1-1/8-inch 4710155963971 E06SL14A0400SPK
31.8mm / Gun Metal / 33mm / 0° / 1-1/8-inch 04710155960178 E06SL11A0GM0SPK
31.8mm / Gun Metal / 38mm / 0° / 1-1/8-inch 04710155960215 E06SL12A0GM0SPK
31.8mm / Gun Metal / 43mm / 0° / 1-1/8-inch 04710155960314 E06SL13A0GM0SPK
31.8mm / Gun Metal / 48mm / 0° / 1-1/8-inch 04710155960352 E06SL14A0GM0SPK
